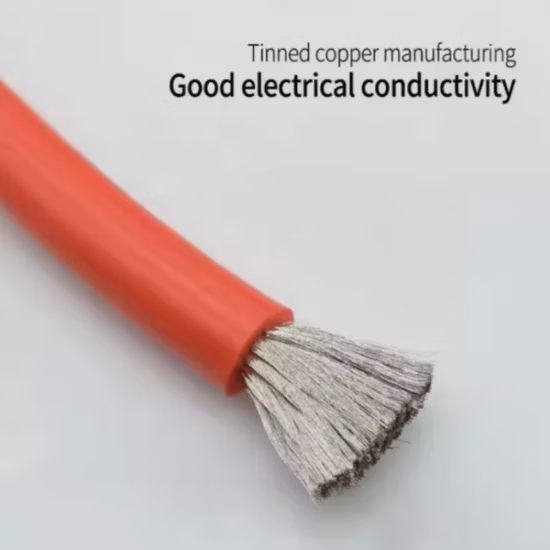

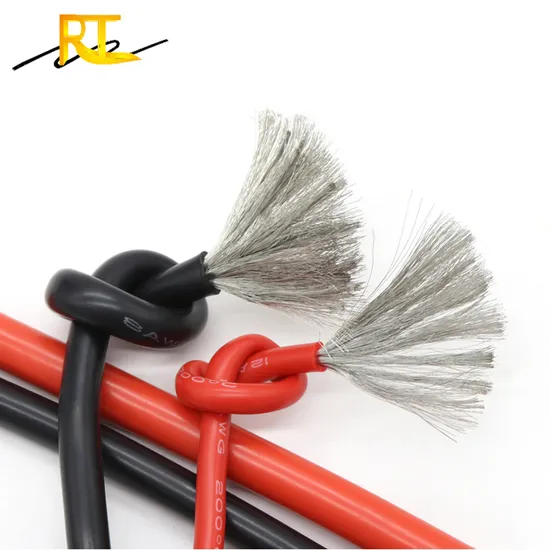

UL5181 High Temperature Resistance PTFE Wire

Overview

Basic Info.

Model NO.	UL5181
Conductor Material	Copper
Sheath Material	Fiberglass
Insulation Material	PTFE Tape
Material Shape	Round Wire
Range of Application	Heating
Certification	ISO9001, CE, CCC, RoHS, CSA
Brand	Fongming
Customize	Available
Sample	3 Meters Free, 3 Days
Standard	UL758, UL1581
MOQ	1000 Meters
Working Temperature	250c
Color	as Required
Rating Voltage	600V
Name	UL5181 High Temperature Resistance PTFE Wire
Transport Package	305m Per Roll, Carton Box Outside
Specification	24~4/0AWG
Trademark	Fongming
Origin	Yangzhou, P. R China
HS Code	8544492100
Production Capacity	100000000meters Per Month

Product Description

UL5181 High Temperature Resistance PTFE WireProduct Description

Description

Name: High Temperature Resistance PTFE Wire
Model: UL5181
Size: 24~4/0AWG
Feature
Ratings Voltage: 600V
Rated Temperature: 250C

Structure
Conductor: Nickel / Nickel Plated Copper
Insulation: PTFE Tape, Fiberglass Serve(Optional)
Jacket: Fiberglass Braid

Application
TGGT wire is suitable for fields of Internal wiring of heating equipment, cooking equipment, and heat producing apparatus in domestic and industrial cooking environments.Ideal for use in equipment wiring in iron and steel mills, cement kilns, and glass plants.It is meant for use in industrial ovens, commercial ovens, and other cooking equipment. It can also be used in commercial and industrial drying equipment.
Product Specification

Specification

SizeAWG	ConductorStructure	PTFEThickness(mm)	Fiberglass ServeThickness(mm)	Fiberglass BraidThickness(mm)	Diameter(mm)
24	7/0.2	0.51	0.15	0.25	2.5±0.2
22	7/0.254				2.7±0.2
20	10/0.254				2.8±0.2
18	16/0.254				3.1±0.3
16	26/0.254				3.4±0.3
14	41/0.254				3.8±0.3
12	65/0.254				4.3±0.3
10	103/0.254				5.1±0.3
8	163/0.254	0.76			6.6±0.5
6	260/0.254				7.6±0.5
4	413/0.254				9.0±0.5
2	168/0.5				10.6±0.5
1	212/0.5				11.6±0.5
1/0	268/0.5	1.14			13.6±0.5
2/0	342/0.5				14.9±0.8
3/0	430/0.5				16.3±0.8
4/0	538/0.5				17.9±0.8

Recommended ProductCertifications

Company Profile Yangzhou Fongming Cable Factory, founded in 1997, is a professional manufacturer of special cables. It is located in Baoying County.Yangzhou City, with beautiful scenery. The factory covers an area of 50,000 square meters and a building area of 30,000 square meters. There are 160 employees, including 10 engineering technicians and 12 quality assurance personnel.Our main products are: 70-150ºC PVC XLPE irradiation crosslinked wire; 150-200 ºC silicone wire, silicone cable, 150-250 ºC cable; 350 ºC fiberglass wire; 450-550 ºC mica wire; 650-1000 ºC ultra-high temperature wire; various sensor wires, cables; green energy vehicle cable.Our Advantages

Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Packaging & Shipping

Packing: 305m per roll or spool, carton packing or add wooden pads.Shipping: tansport bysea or by air.As the customers requirements.Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.FAQ
FAQ

1. Why the price is so low?

You are ordering directly from the factory.

2.Where is your factory located? How can I visit there? Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples? Yes, we are honored to offer you samples.

4. Can you make the products with my design?

Yes. customization is welcomed.
